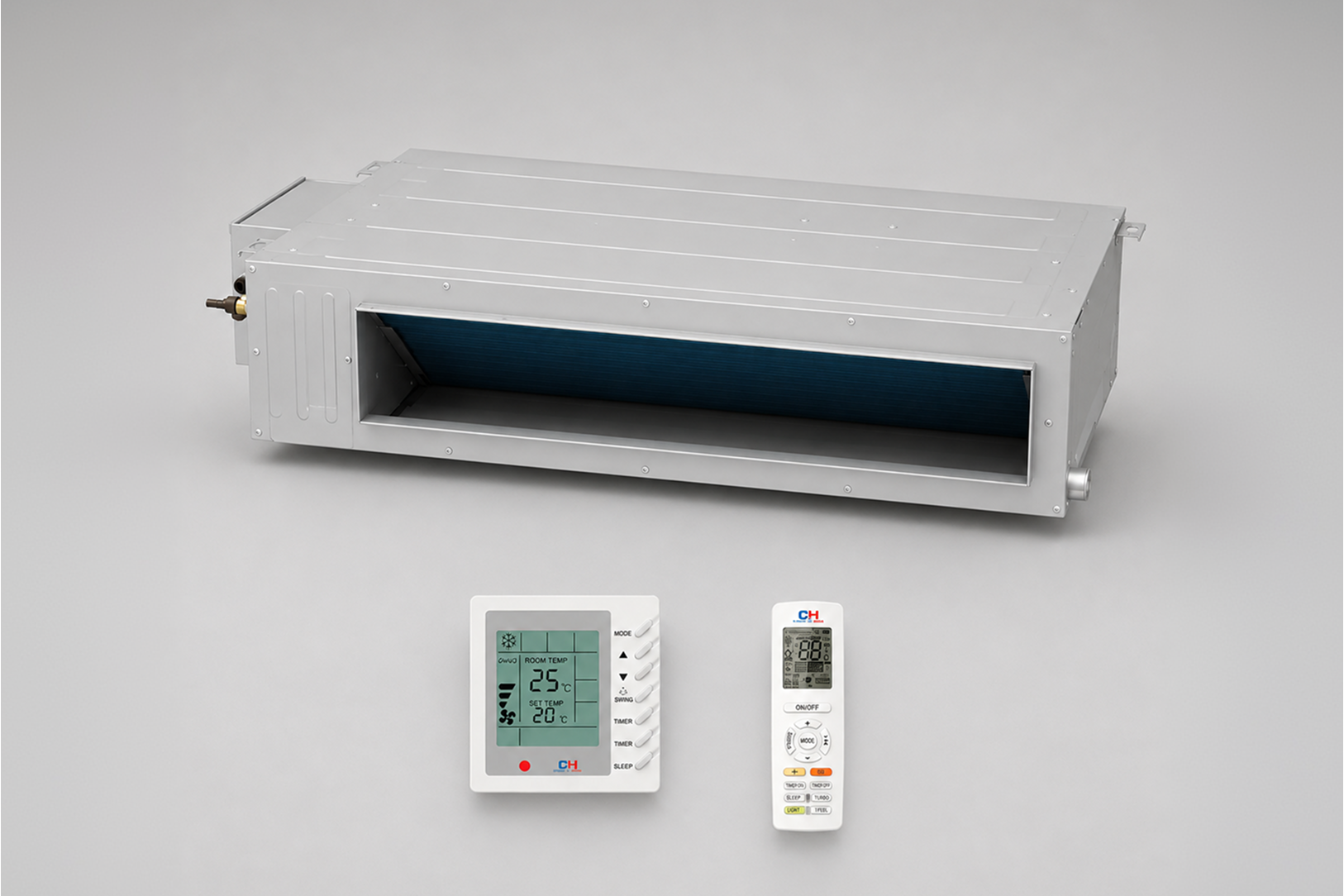

Cooper&Hunter CHML-ID09RK2 (I)
The Cooper&Hunter CHML-ID09RK2 (I) is a compact concealed duct indoor unit from the Nordic Multi Light GEN VI range, designed for multi-split air conditioning systems. With 2.65 kW cooling and 2.80 kW heating capacity, it provides efficient and discreet climate control for residential and light commercial applications.
Its slim 200 mm profile, increased external static pressure and R32 refrigerant make it particularly suitable for concealed ceiling installations where space is limited.
Key Features
- Compact 200 mm profile – suitable for installations with limited ceiling space.
- 2.65 kW Cooling / 2.80 kW Heating – efficient year-round comfort.
- Increased External Static Pressure – designed for ducted air distribution.
- 7 Airflow Settings – airflow from 520 to 700 m³/h.
- R32 Refrigerant – modern refrigerant used by the Nordic Multi Light GEN VI range.
- Centrifugal Fan – optimised for ducted installations.
- Wi-Fi Accessibility – available within the GEN VI duct range.
- Optional Wired Controllers – compatible controller accessories are available.
- Built-in Drain Pump – included among the technology features listed for the 2026 Duct Series.
| Specification | Details |
|---|---|
| Model | CHML-ID09RK2 (I) |
| Series | Nordic Multi Light GEN VI Duct R32 |
| Unit Type | Concealed Duct Indoor Unit |
| Cooling Capacity | 2.65 kW |
| Heating Capacity | 2.80 kW |
| Dehumidification | 1.40 L/h |
| Fan Type | Centrifugal |
| Refrigerant | R32 |
| Airflow Rate | 700 / 670 / 640 / 610 / 580 / 550 / 520 m³/h |
| Power Supply | 220–240 V / 50 Hz / 1 Phase |
| Indoor Unit Dimensions (L × D × H) | 710 × 450 × 200 mm |
| Package Dimensions | 1005 × 565 × 260 mm |
| Net / Gross Weight | 18.5 / 22.5 kg |
| Sound Level | 41 / 39 / 38 / 37 / 36 / 35 / 34 dB(A) |
| Liquid Pipe Connection | 1/4″ |
| Gas Pipe Connection | 3/8″ |
| Installation Type | Concealed Duct / Ceiling Installation |
